SHACMAN X3000 Cummins 6X4 Dump Truck for Mining and Muck Hauling | Chengda

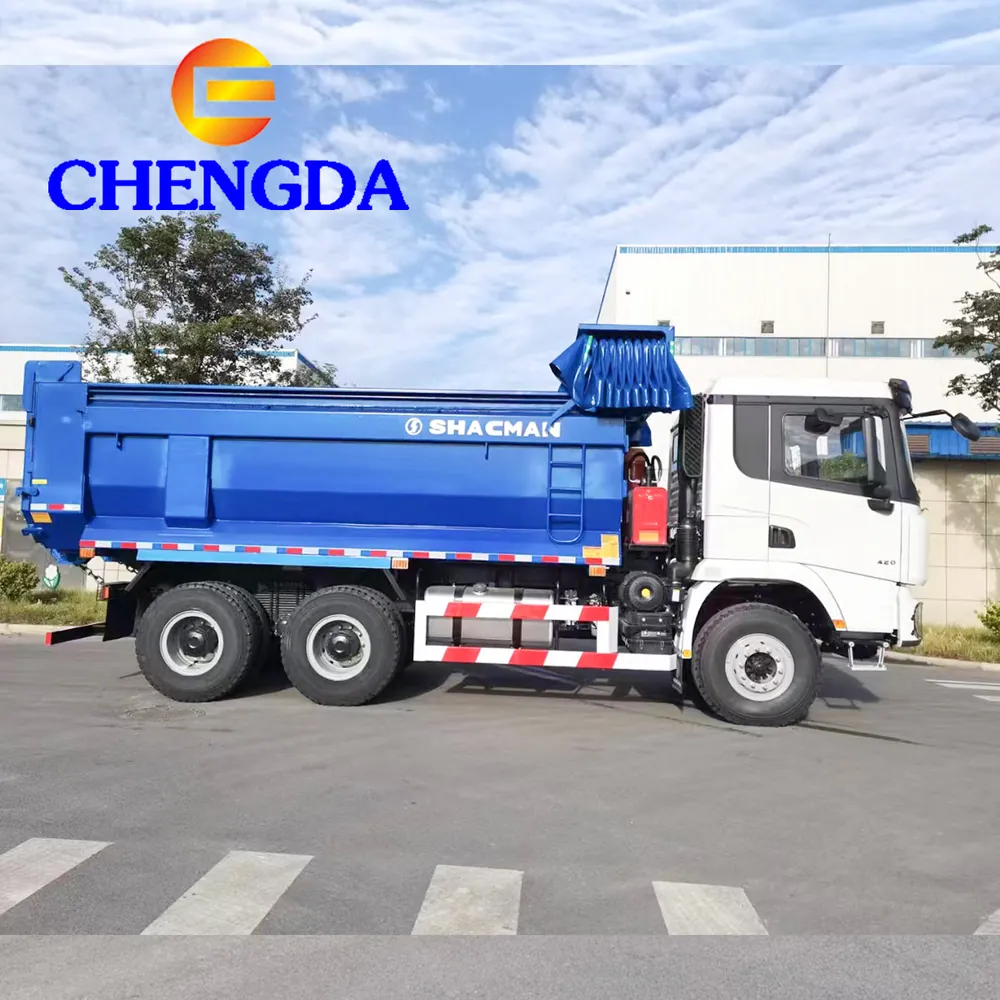

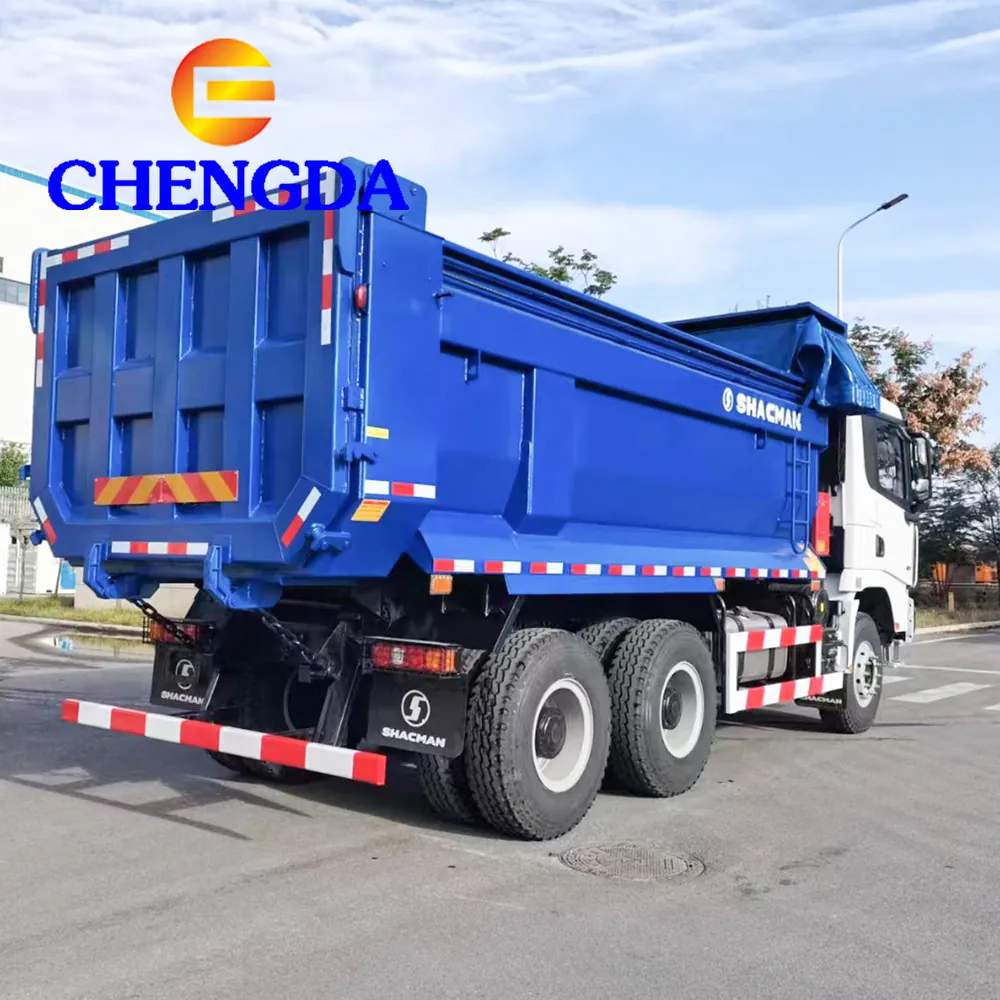

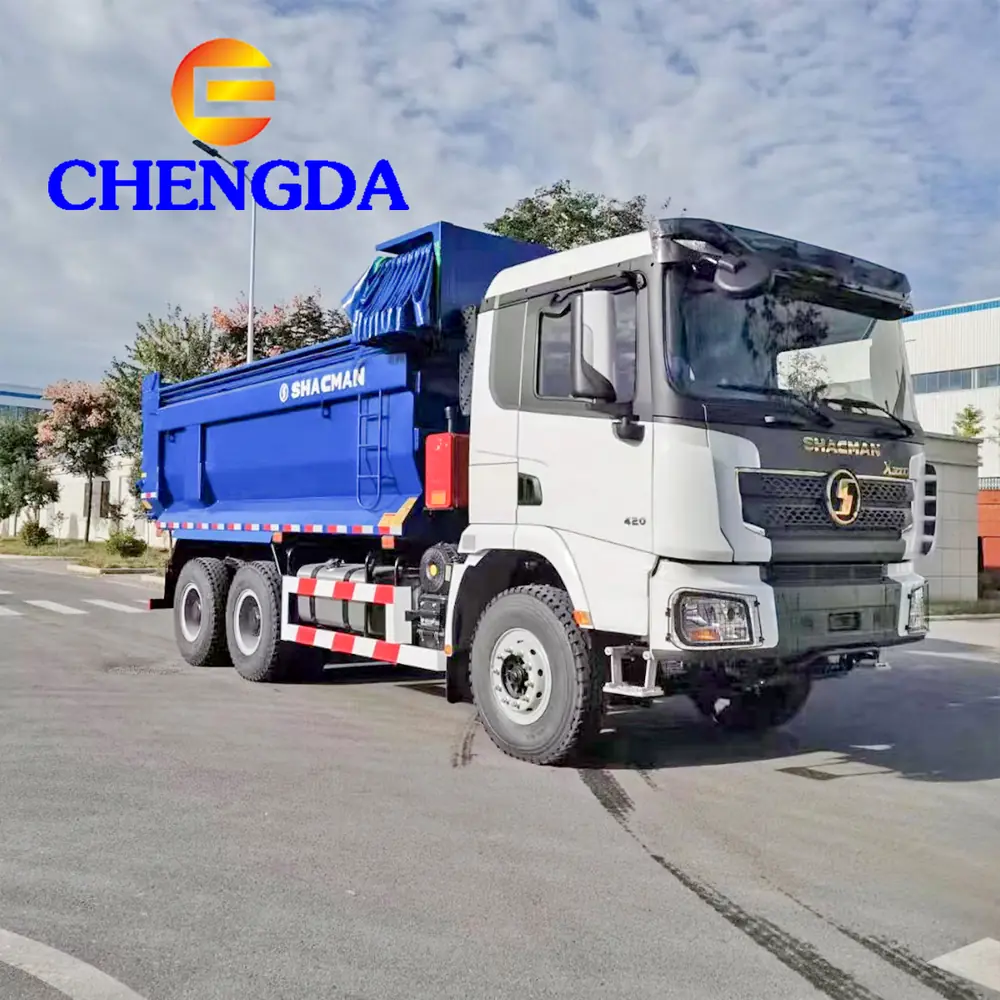

The SHACMAN X3000 Cummins 6X4 dump truck is a heavy-duty tipper built for muck transportation, mining areas, and underground slag discharge. It runs a Cummins engine with 10L to 12L displacement, 340 PS to 550 PS power, and 1400 Nm to 2100 Nm torque, matched to a FAST 10 or 12 speed manual transmission, an 850×300 (8+7) mm frame, MAN 9.5 ton front axle and MAN 16 ton rear axle, plus 12.00R20 tires. A 50 ton GCW and 400 to 700 liter fuel tank keep long hauls moving, while the lengthened flat roof cab adds air conditioning and a hydraulic driver seat for full-shift comfort. Contact Chengda for a quote on your configuration.
Get a factory-direct price with full shipping cost to your port.
 |  |  |
See it from every angle — request more photos of your preferred configuration.
Need a specific steel grade or compartment layout? We build to your spec.
| Parameter | Value |
|---|---|
| General Information | |
| Platform | X3000 |
| Drive Type | 6X4 |
| Vehicle Weight | GVW: 9.8 tons |
| Vehicle Weight | GCW: 50 tons |
| Frame | 850×300（8+7）mm |
| Wheelbase | 3175~4575+1400 |
| Engine & Drivetrain | |
| Engine (Weichai) | Emissions: Euro II to Euro V |
| Engine (Weichai) | Displacement: 10L – 12L |
| Engine (Weichai) | Power: 340 PS – 550 PS |
| Engine (Weichai) | Torque: 1400 Nm – 2100 Nm |
| Engine (Cummins) | Emissions: Euro II to Euro V |
| Engine (Cummins) | Displacement: 10L – 12L |
| Engine (Cummins) | Power: 340 PS – 550 PS |
| Engine (Cummins) | Torque: 1400 Nm – 2100 Nm |
| Transmission | FAST 10 or 12 speed manual |
| Clutch | φ430 |
| Steering Gear | ZF8098 |
| Axle, Suspension & Tires | |
| Axle | Front axle: MAN 9.5 ton |
| Axle | Rear axle: MAN 16 ton single or double reduction |
| Gear Ratio | 4.769 – 5.92 |
| Suspension | Multi leaf spring front and rear setup |
| Tires | 12.00R20 |
| Tank, Cab & Configuration | |
| Fuel Tank | 400 - 700 liter aluminum or steel tank |
| Cab | Standard |
| Cab | Lengthened flat roof |
| Configuration | Hydraulic driver seat, four point hydraulic suspension cab, electrically controlled automatic thermostatic air conditioner, electric window, ordinary rear-view mirror, manual cab turnover, telescopic shaft control, ordinary air filter, metal bumper, hinged upper pedal, water tank protective barrier, tail lamp protective barrier |
Full spec sheet with dimensions and axle options on request.
Request Full Specification Sheet

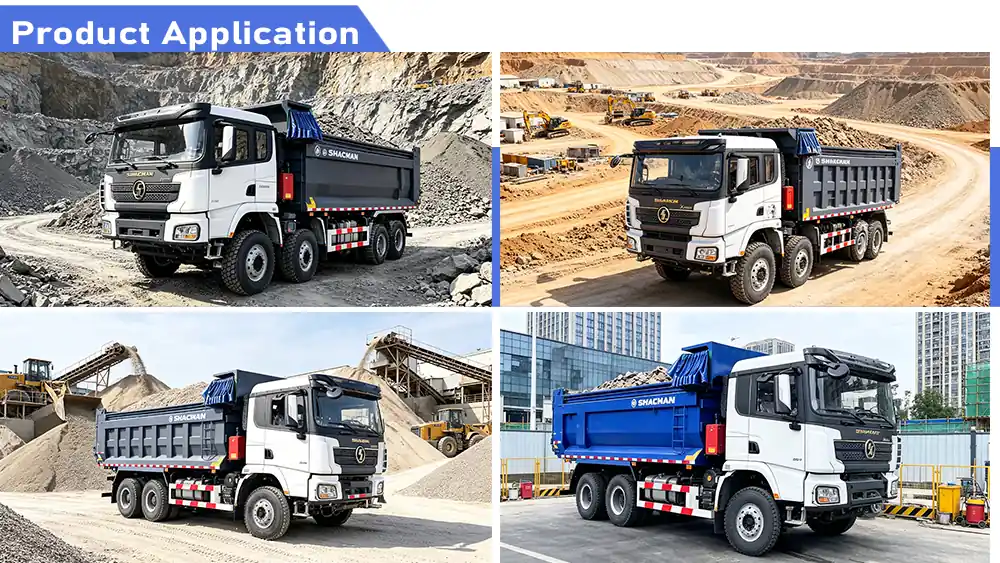

The SHACMAN X3000 Cummins 6X4 dump truck is widely used for muck hauling on urban construction sites, ore and aggregate transport in open-pit mining areas, and underground slag discharge. In African and Middle Eastern markets, it handles dusty quarry roads and long-haul gravel routes where the MAN 16 ton rear axle and 12.00R20 tires keep loads stable. With a 50 ton GCW and 850×300 (8+7) mm frame, it moves heavy material through rough terrain without frequent downtime.
Beyond mining and construction, this 6X4 dump truck also suits sand and gravel yards, coal yards, and port bulk cargo transfer. The Cummins engine delivers 340 PS to 550 PS with 1400 Nm to 2100 Nm torque, matched to a FAST 10 or 12 speed manual gearbox for smooth shifting under load. A 400 to 700 liter fuel tank reduces refueling stops on long working days, while the lengthened flat roof cab with air conditioner and hydraulic driver seat keeps operators comfortable through extended shifts.
Tell us your cargo and route — we recommend the right capacity and compartments.
Cummins Power from 340 PS to 550 PS The Cummins engine delivers 340 PS to 550 PS with 1400 Nm to 2100 Nm of torque and 10L to 12L displacement, giving strong pulling power for muck hauling and mining work. | Euro II to Euro V Emission Options Choose the emission standard that matches your local fuel and regulations, from Euro II to Euro V, on the same Cummins platform. |
850×300 (8+7) mm Reinforced Frame The 850×300 (8+7) mm frame carries a GVW of 9.8 tons and a GCW of 50 tons, built to handle heavy loads on rough site roads. | MAN 9.5 Ton Front and 16 Ton Rear Axles MAN 9.5 ton front axle and MAN 16 ton rear axle with single or double reduction, plus gear ratios from 4.769 to 5.92 for different terrain and load demands. |

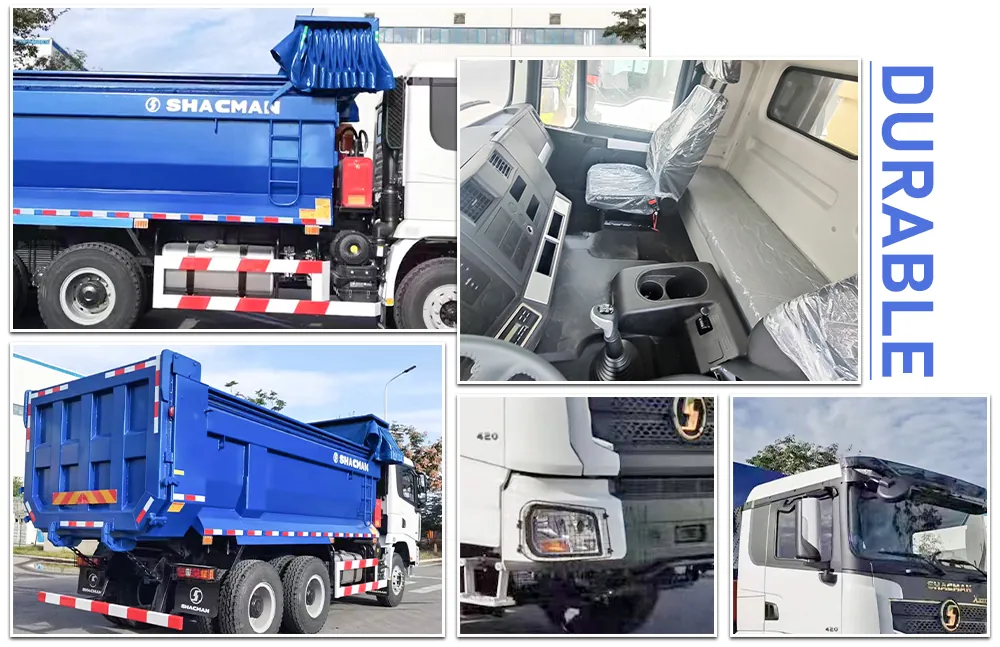

FAST 10 or 12 Speed Manual Transmission FAST 10 or 12 speed manual gearbox with a φ430 clutch and ZF8098 steering gear, giving stable shifting and easy control on long hauls. | 400 to 700 Liter Fuel Tank and Full Cab Setup 400 to 700 liter aluminum or steel fuel tank reduces refueling stops, while the lengthened flat roof cab adds a hydraulic driver seat, four point hydraulic suspension, automatic thermostatic air conditioner and electric windows. |
Compare features and prices — no obligation.

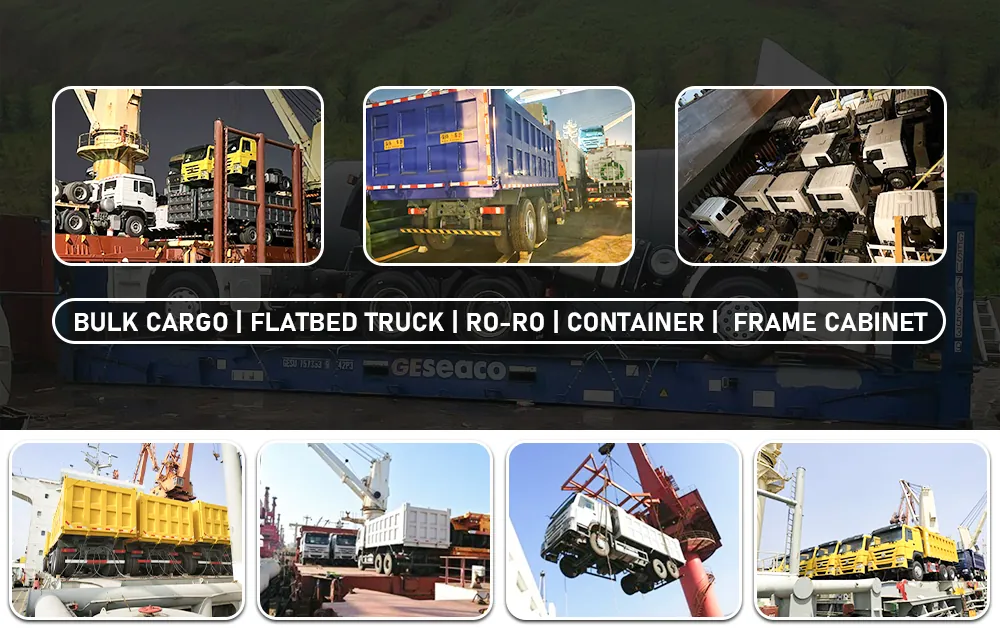

The SHACMAN X3000 Cummins 6X4 dump truck is shipped by bulk ship, Ro-Ro vessel, or flat rack container, with waxing and anti-corrosion treatment applied to the frame and exposed metal surfaces before loading. Standard production takes 15-20 working days, while custom configurations such as a specific cab type, fuel tank capacity, or gear ratio require 25-30 days. We support FOB, CFR, CIF, and EXW terms, and our order tracking team coordinates documentation and delivery to ports across Africa, South America, the Middle East, East Asia, South Asia, Southeast Asia, and Oceania.
Get exact freight cost to your port within 24 hours.
Shandong Chengda Truck Trailer Co., Ltd. was founded in 2005 and integrates the R&D, manufacturing, sales, and service of semi-trailers, commercial trucks, specialized trailers, and genuine spare parts. Our portfolio covers full trailers, heavy-duty trucks, new energy vehicles, and specialized machinery, supported by an expert sales team, dedicated order tracking, and responsive after-sales support. Chengda products have been exported to 55 countries and regions across Africa, South America, the Middle East, East Asia, South Asia, Southeast Asia, and Oceania, and we work with major OEMs at home and abroad on a long-term basis.
Work directly with the manufacturer — no middlemen.
We regularly welcome customers from Africa, South America, the Middle East, Southeast Asia and other regions to visit our factory, where they inspect the SHACMAN X3000 Cummins 6X4 dump truck on the production line and review the frame, axles and cab assembly up close. During these visits, clients see the 850×300 (8+7) mm frame and MAN 9.5 ton front axle and MAN 16 ton rear axle for themselves, then confirm orders and discuss long-term cooperation with our sales and after-sales teams. Chengda products have now reached 55 countries and regions, and every factory visit is a chance to build a lasting partnership.
Join buyers from 80+ countries who have visited our factory and closed deals.
What engine power options are available for this dump truck?
The Cummins engine ranges from 340 PS to 550 PS with 10L to 12L displacement and 1400 Nm to 2100 Nm torque. Emissions meet Euro II to Euro V standards.
How much load can the SHACMAN X3000 6X4 dump truck handle?
It has a GVW of 9.8 tons and a GCW of 50 tons. The MAN 16 ton rear axle and multi leaf spring suspension support heavy-duty mining and muck hauling.
What transmission and axles does it use?
It uses a FAST 10 or 12 speed manual transmission with a φ430 clutch. Front axle is MAN 9.5 ton and rear axle is MAN 16 ton with gear ratio 4.769 to 5.92.
Can I customize the fuel tank and cab configuration?
Yes. You can choose a 400 to 700 liter aluminum or steel fuel tank, and either a standard or lengthened flat roof cab. Contact us to confirm your preferred setup.
What is the delivery time and how do you ship?
Delivery time depends on your configuration and order quantity. We ship from Chinese ports to Africa, South America, the Middle East, and other regions. Contact us for a specific schedule.
What quality certifications and after-sales support do you provide?
Our products operate in full compliance with ISO9001 standards. We also provide dedicated order tracking and responsive after-sales support for every customer.
