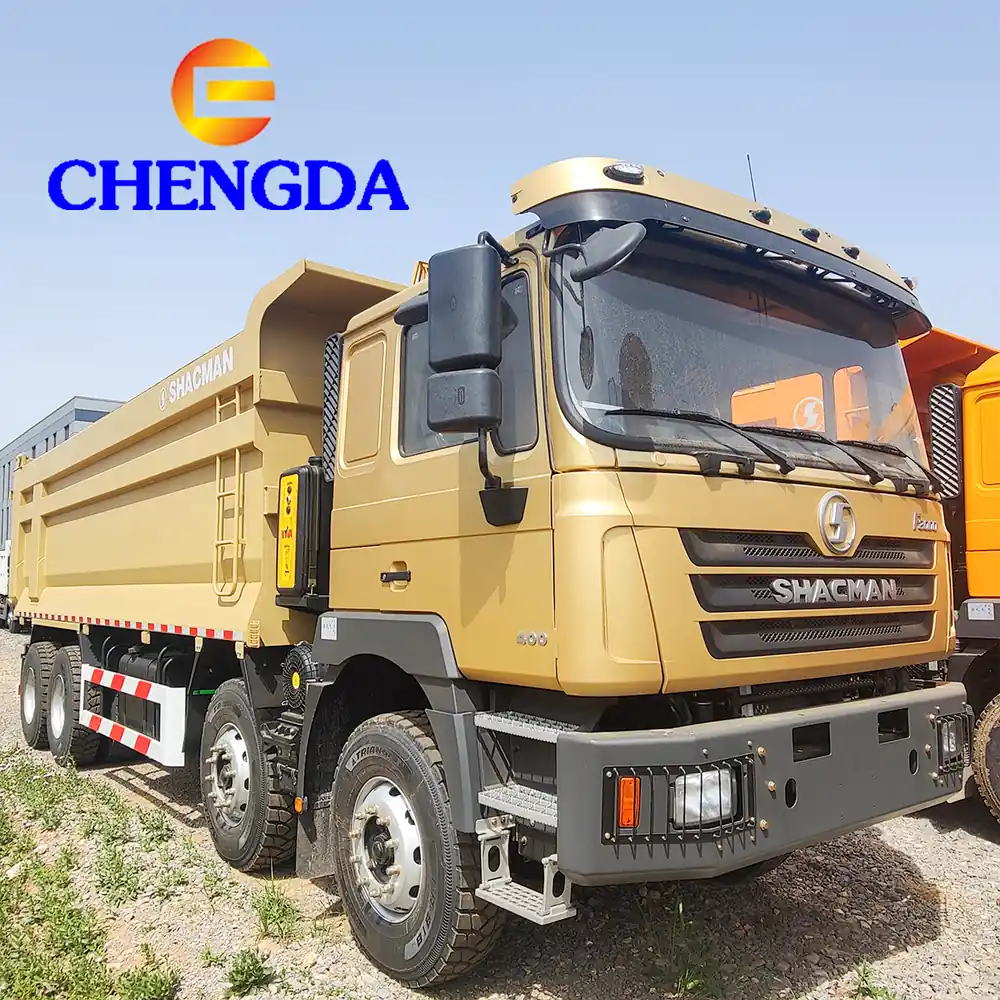

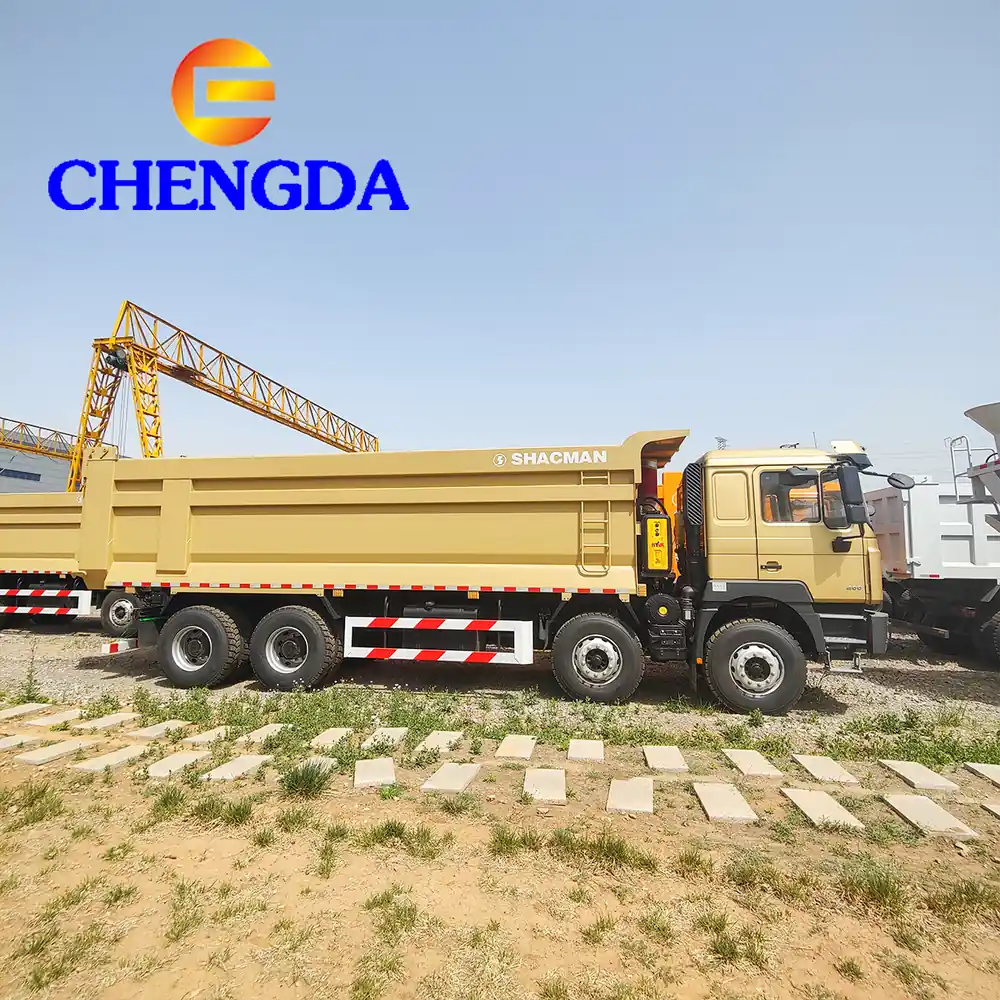

SHACMAN F3000 400HP 8X4 Dump Truck Golden | Chengda
The SHACMAN F3000 8X4 dump truck is a 12-wheel heavy duty tipper built on the SX3315DU366 chassis, powered by a Weichai WP12.400E201 Euro II engine producing 400HP and 1920N.m of torque. It carries a 40000kg loading capacity with a 7400x2300x1500mm cargo box, MAN 9.5T front axle and MAN 16T double reduction rear axle with differential lock, plus a 10JSD180+QH50 transmission and 12.00R20 radial tyres. The F3000 flat roof cab comes with air conditioner, hydraulic driver seat and 4-point hydraulic suspension, suited to construction, mining and road engineering work. Contact Chengda for pricing and delivery details.
Get a factory-direct price with full shipping cost to your port.
 |  |  |
See it from every angle — request more photos of your preferred configuration.
Need a specific steel grade or compartment layout? We build to your spec.
| Parameter | Value |
|---|---|
| General Information | |
| Model | SX3315DU366 Heavy Duty Type |
| Traction Type | 8X4 |
| Driving Type | RHD |

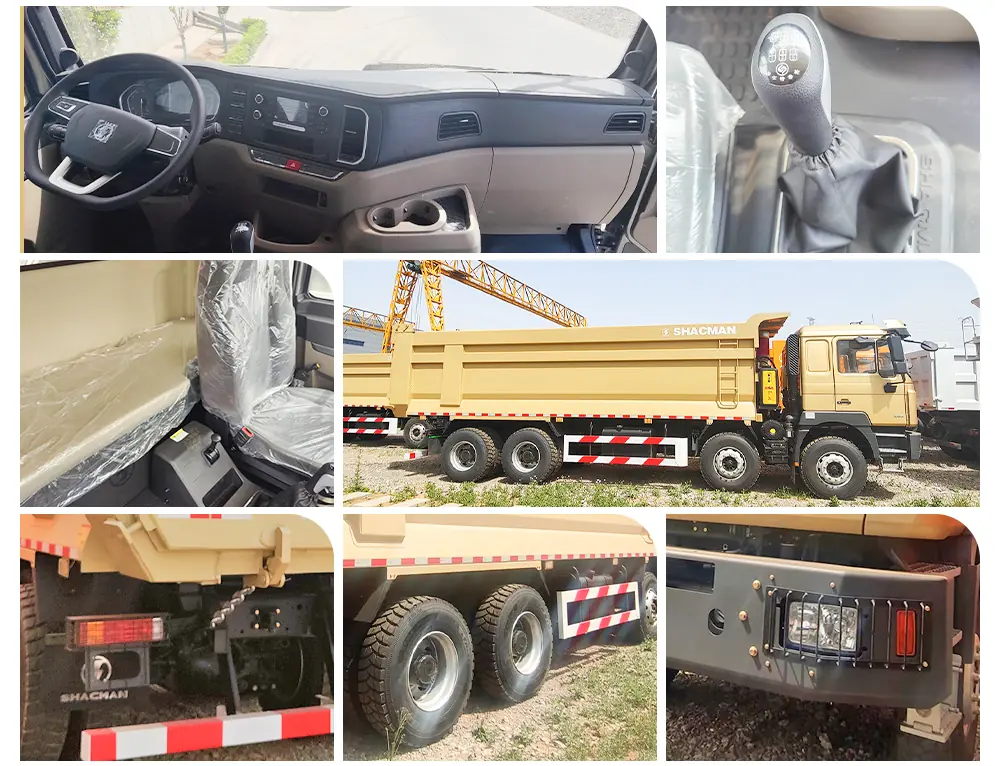

| Driver's Cab | F3000 flat roof, air conditioner, hydraulic driver seat, 4-point hydraulic suspension cabin |
| Dimensions & Weight | |
| Wheel Base | 1800+3575+1400mm |
| Overall Size | 10250x2490x3450mm |
| Curb Weight | 14600kg |
| Loading Capacity | 40000kg |
| Engine & Drivetrain | |
| Engine Brand | Weichai |
| Engine Type | Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling |
| Engine Model | WP12.400E201 Euro II |
| Maximum Output | 400HP |
| Rated Speed | 1900rpm |
| Max Torque | 1920N.m/1000-1400rpm |
| Number of Cylinder | 6 |
| Displacement | 11.596L |
| Clutch | 430mm |
| Transmission | 10JSD180+QH50 |
| Axles & Tires | |
| Front Axle | MAN 9.5T |
| Rear Axle | MAN 16T double reduction driving axle, inter-wheel differential and differential lock |
| Rear Axle Ratio | 4.769 |
| Tyre | 12.00R20 Radial tyre (10+1 pcs) |
| Electrics & Performance | |
| Operating Voltage | 24V, negative grounded |
| Maximum Driving Speed | 80km/h |

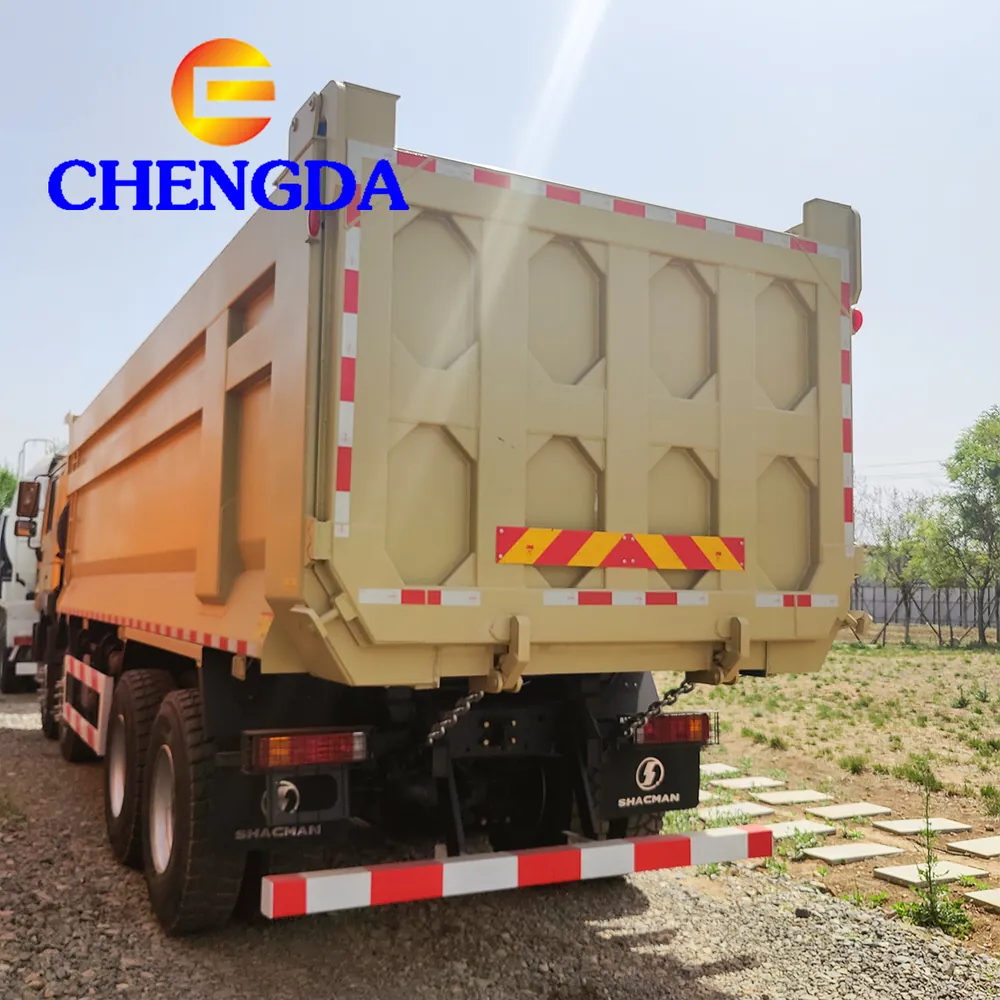

| Cargo Box | |
| Box Inner Size | 7400x2300x1500mm |
| Thickness | Floor plate 8mm and side 6mm |
| Lifting System | Front lifting system |
| Optional Configurations | |
| Optional HP | 400HP, 340HP, 380HP, 430HP |
| Optional Gear Box | 10JSD180 or 12JSD200T |
| Optional Cargo Volume | 30 cubic yard, 25CBM, 30CBM |
Full spec sheet with dimensions and axle options on request.
Request Full Specification Sheet

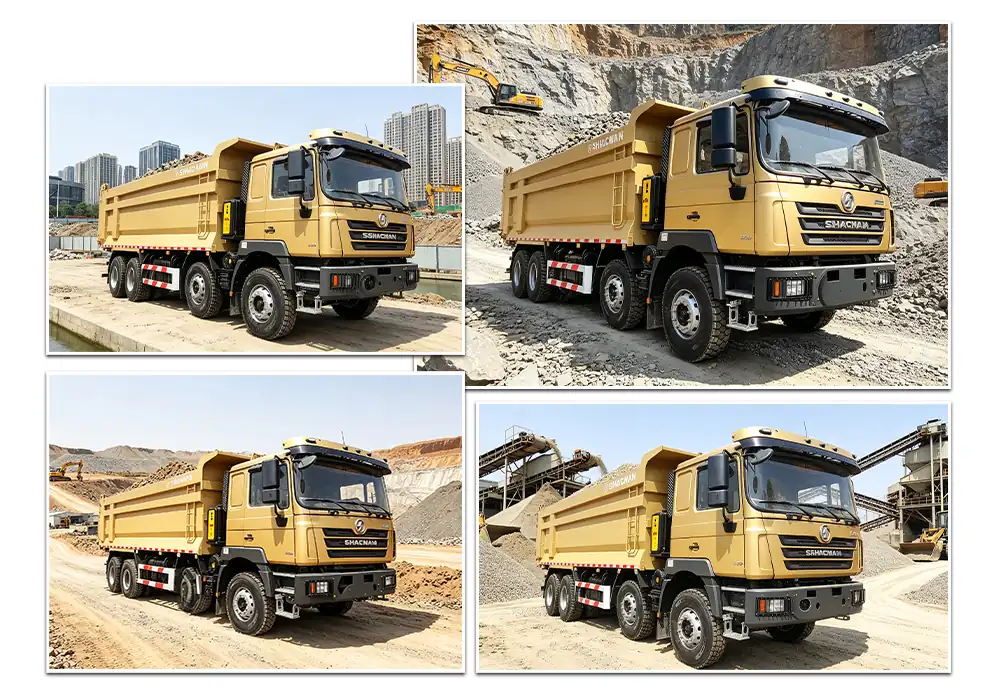

The SHACMAN F3000 400HP 8X4 dump truck is built for construction sites, mining areas and road engineering projects where 40,000kg loading capacity and a 7,400x2,300x1,500mm cargo box keep material moving shift after shift. On unpaved haul roads and quarry floors, the MAN 9.5T front axle and MAN 16T double reduction rear axle with differential lock maintain traction under full loads, while the WP12.400E201 engine delivers 1,920N.m of torque from 1,000-1,400rpm for steady climbing on grades. Its front lifting system discharges sand, gravel, ore and construction waste quickly, and the 12.00R20 radial tyres (10+1 pcs) handle rough terrain in Africa, South America and the Middle East.
Beyond heavy hauling, this 8X4 tipper suits municipal engineering, agricultural transport and long-distance material delivery, carrying earthwork, fertilizers, soil and road maintenance supplies. The F3000 flat roof cab with air conditioner, hydraulic driver seat and 4-point hydraulic suspension cabin reduces operator fatigue across long working days, and the 430mm clutch paired with the 10JSD180+QH50 transmission supports smooth, repeated loading cycles. With a maximum driving speed of 80km/h and a 24V negative grounded electrical system, it moves efficiently between sites and stockyards. Chengda has exported trucks to 55 countries, backed by sales, order tracking and after-sales support teams.
Tell us your cargo and route — we recommend the right capacity and compartments.
400HP Weichai Engine with 1920N.m Torque The WP12.400E201 Euro II engine delivers 400HP at 1900rpm and 1920N.m of torque from 1000-1400rpm, giving this 8X4 dump truck the pulling power needed for fully loaded hauls on construction and mining sites. | 40,000kg Loading Capacity on a 14,600kg Curb Weight With a rated loading capacity of 40000kg and a curb weight of 14600kg, the SX3315DU366 Heavy Duty Type chassis is built to move heavy loads of ore, aggregate and earthwork shift after shift. |
25CBM Cargo Box with Front Lifting System The box measures 7400x2300x1500mm with an 8mm floor plate and 6mm side plates, paired with a front lifting system for fast, stable dumping. Optional cargo volumes include 30 cubic yard, 25CBM and 30CBM. | MAN Axles with Differential Lock and 4.769 Ratio MAN 9.5T front axle and MAN 16T double reduction driving axle with inter-wheel differential and differential lock, running a 4.769 ratio, keep traction steady on soft or uneven ground. |
12.00R20 Radial Tyres on an 8X4 Drivetrain Ten plus one 12.00R20 radial tyres on an 8X4 traction layout with a 1800+3575+1400mm wheel base spread the load across twelve wheels for stability under heavy payloads. | RHD F3000 Cab with Air Conditioner and Hydraulic Seat The F3000 flat roof cab comes with air conditioner, hydraulic driver seat and 4-point hydraulic suspension cabin, keeping the operator comfortable through long working days. Optional HP: 400HP, 340HP, 380HP, 430HP. |
Compare features and prices — no obligation.

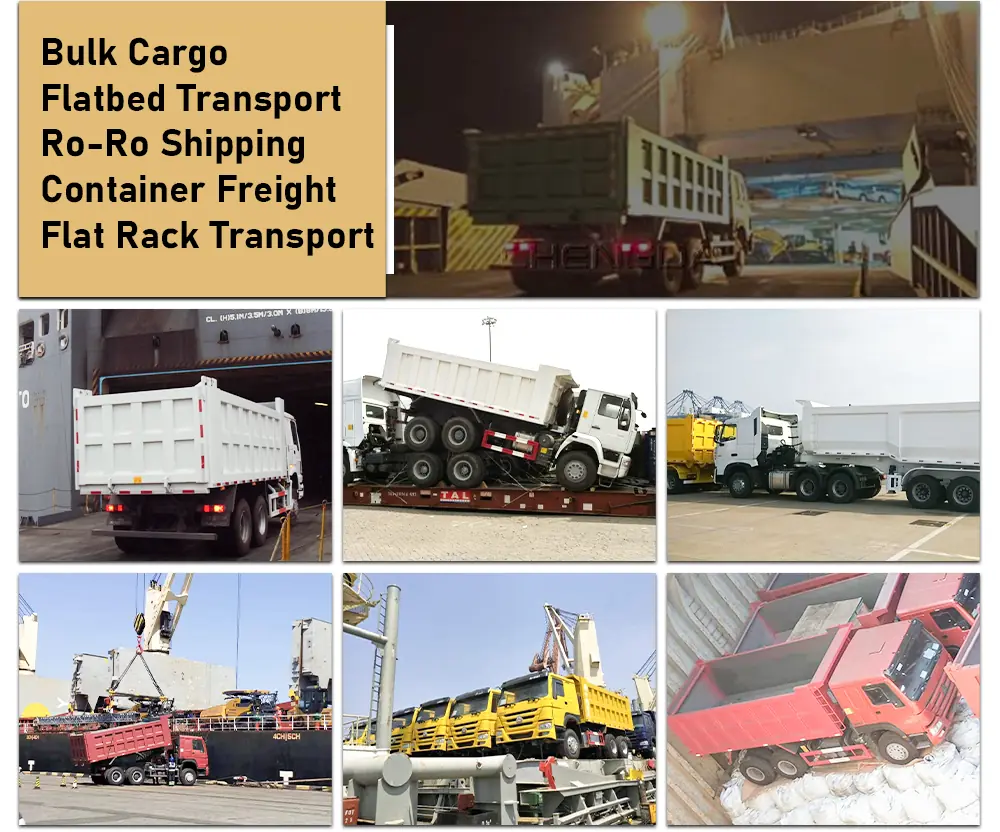

The SHACMAN F3000 400HP 8X4 dump truck is shipped in bulk or by Ro-Ro vessel, with flat rack containers available for smaller orders, and each unit undergoes anti-corrosion treatment before loading to protect the chassis and cargo box during ocean transit. Standard production takes 15-20 working days, while custom configurations such as optional 340HP, 380HP or 430HP engines and 25CBM to 30CBM cargo volumes require 25-30 days. We support FOB, CFR, CIF and EXW terms, and our team coordinates full export documentation and delivery to major ports across Africa, South America, the Middle East and Southeast Asia.
Get exact freight cost to your port within 24 hours.

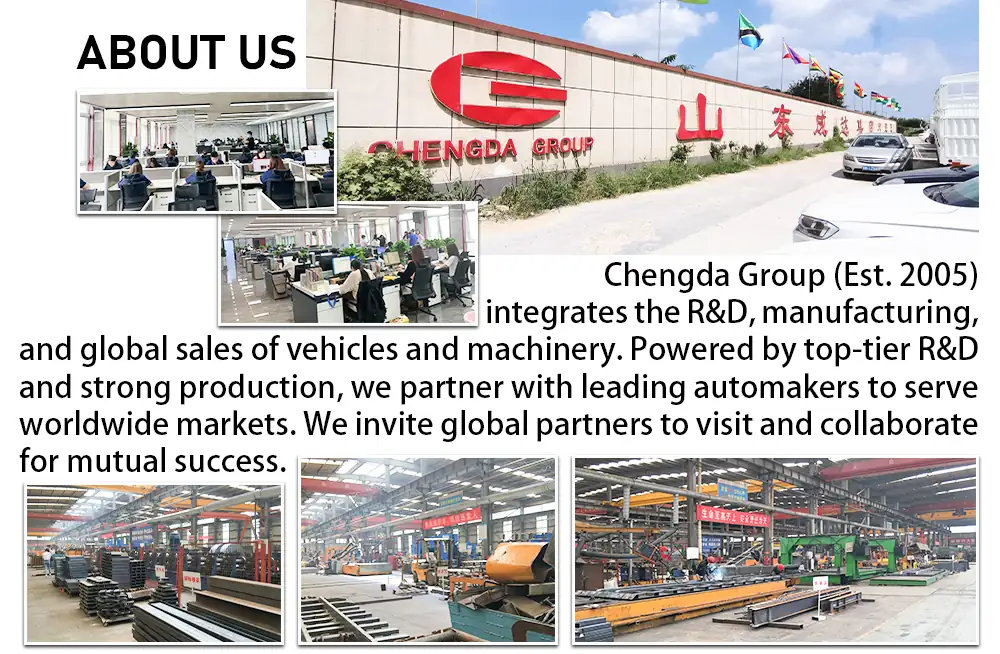

Shandong Chengda Truck Trailer Co., Ltd. was founded in 2005 and is a global enterprise integrating the R&D, manufacturing, sales, and service of semi-trailers, commercial trucks, specialized trailers, and genuine spare parts. Our product range covers full trailers, heavy-duty trucks, new energy vehicles, and specialized machinery, supported by an experienced sales team, dedicated order tracking, and responsive after-sales service. Chengda products have been exported to 55 countries and regions across Africa, South America, the Middle East, East Asia, South Asia, Southeast Asia, and Oceania, and we work with major OEMs at home and abroad to deliver reliable transport solutions.
Work directly with the manufacturer — no middlemen.
Customers from Africa, South America, the Middle East and Southeast Asia have visited our manufacturing facility to inspect the SHACMAN F3000 400HP 8X4 dump truck in person. During the visit they toured the production line, reviewed the Weichai engine, MAN axles and front lifting system, and confirmed the build quality of the 7400x2300x1500mm cargo box before placing orders. Many of these buyers have since become long-term partners, returning for repeat purchases and spare parts support as their hauling fleets expand.
Join buyers from 80+ countries who have visited our factory and closed deals.
What is the loading capacity of this dump truck?
The SHACMAN F3000 8X4 dump truck has a loading capacity of 40000kg and a curb weight of 14600kg. It handles heavy hauling on construction and mining sites.
What engine and horsepower does it use?
It runs a Weichai WP12.400E201 diesel engine with 400HP and 1920N.m torque. Optional horsepower includes 340HP, 380HP and 430HP.
What is the cargo box size and thickness?
The box inner size is 7400x2300x1500mm, with an 8mm floor plate and 6mm side plates. Optional cargo volumes include 25CBM and 30CBM.
Can I customize the cargo body or gearbox?
Yes. We can make different thickness and shapes of cargo body, and you may choose a 10JSD180 or 12JSD200T gearbox to match your work.
How is this truck shipped and how long is delivery?
Trucks are shipped by sea, usually RoRo or container depending on destination. Delivery time varies by order and port, so contact us for a schedule.
What quality certification do your trucks carry?
Chengda operates in full compliance with ISO9001 standards. Our products have been exported to 55 countries across Africa, South America, the Middle East and Asia.
