SINOTRUK HOWO TX 8X4 Dump Truck — Heavy-Duty Tipper for Mining and Construction Factory-direct HOWO TX 8X4 dump truck engineered for open-pit mining, quarry aggregate hauling and large-scale earthworks. MAN-technology engine from 360 HP to 440 HP, HW19710 10-speed manual transmission, reinforced AC16 double-reduction drive axles and a Q345B high-tensile tipping box. Left-hand or right-hand drive, customized cargo body dimensions, and full export documentation from our factory in China. |
Interested? Contact us for pricing and availability.
Send Inquiry Now
Need a custom configuration? Tell us your requirements.
Customize Yours
| Parameter | Specification |
|---|---|
| Vehicle and Powertrain | |
| Model | SINOTRUK HOWO TX 8X4 Dump Truck / Tipper |
| Drive Type | 8X4 (Left Hand Drive / Right Hand Drive optional) |
| Engine | MAN technology diesel engine, 360 HP / 380 HP / 400 HP / 430 HP / 440 HP |
| Transmission | HW19710 10-speed manual, 10 forward and 2 reverse gears |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V (optional) |
| Overall Dimensions | 10,300 mm x 2,500 mm x 3,450 mm |
| Cargo Box and Hydraulic System | |
| Cargo Box Material | Q345B high-strength wear-resistant steel |
| Cargo Box Dimensions | 7,600 mm x 2,300 mm x 1,500 mm standard (customized dimensions available) |
| Box Type | U-shaped or rectangular high-strength steel tipping body |
| Lifting System | Front-lifting hydraulic cylinder (HYVA or equivalent) |
| Chassis, Safety and Cabin | |
| Driving Axle | Reinforced AC16 double-reduction drive axles |
| Gross Vehicle Weight | 31,000 kg |
| Brake System | Dual-circuit compressed air brake with ABS |
| Tires | 12.00R20 or 12R22.5 radial steel tires (12 + 1 pieces) |
| Cabin | Updated TX cabin, air-suspended driver seat, sleeper bunk |
| Delivery Time | Dispatched within 15-30 working days after deposit confirmation |
Join 500+ buyers who trust our factory-direct supply.
Talk to an Expert

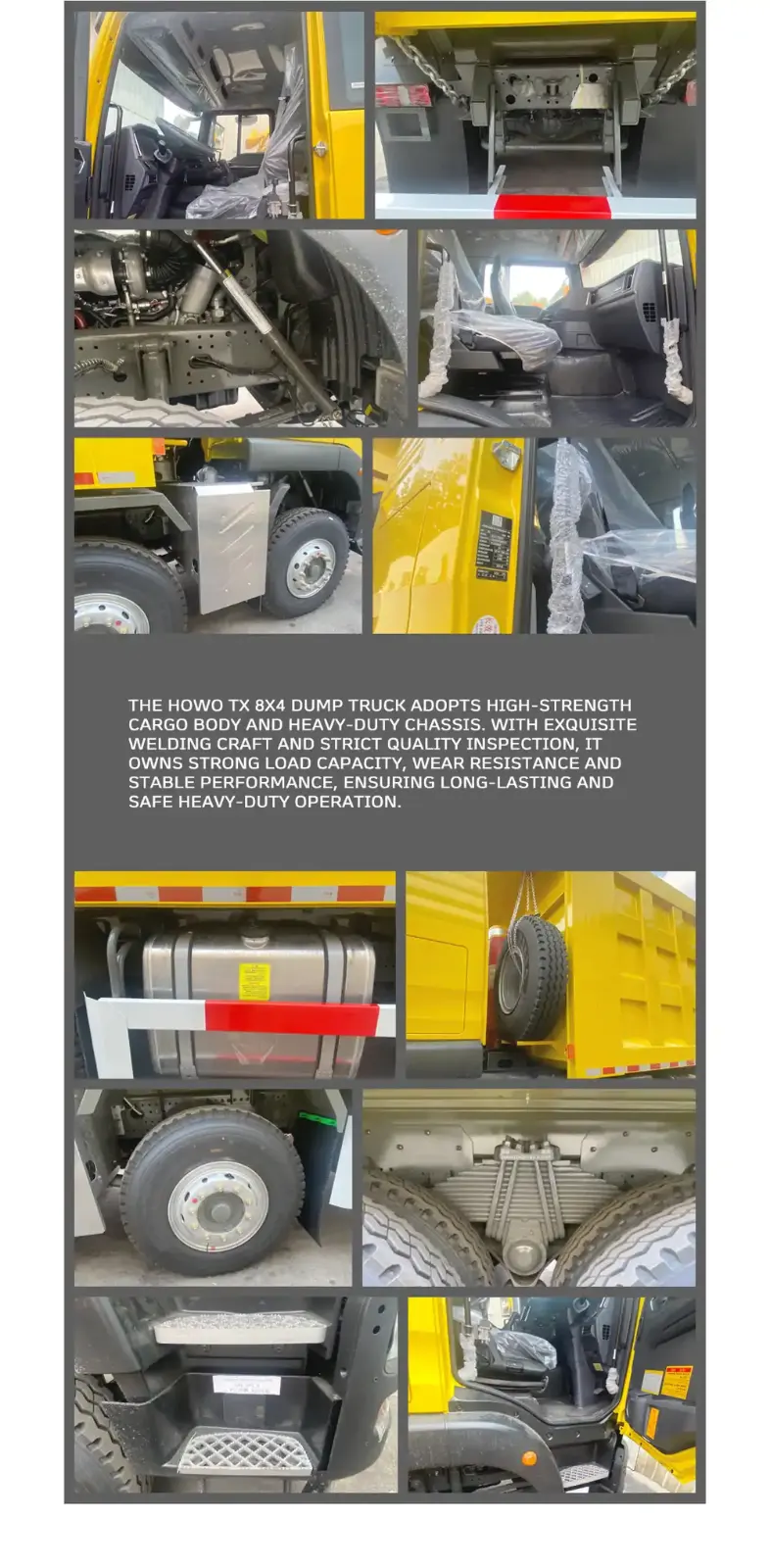

Advanced MAN Power Infrastructure High-torque MAN technology engine delivering massive low-end pulling power for fully loaded climbs on steep haul roads. | Military-Grade Chassis Durability Reinforced double-layer high-tensile steel frame and multi-leaf spring suspension prevent distortion under maximum load. |
Reliable Hydraulic Lifting System Premium front-lifting cylinder (HYVA or equivalent) for fast, smooth and safe tipping cycles on uneven ground. | Wear-Resistant High-Strength Cargo Box Q345B high-tensile steel plates engineered to absorb heavy impacts from rock, coal and aggregate loading. |
Ergonomic Cabin Comfort and Operator Safety Updated TX cabin with air-suspended driver seat, wide sleeper bunk, modern dashboard layout and an all-round visibility profile for long-shift safety. |
Ready to enhance your transport efficiency?
Get a Free Quote Now

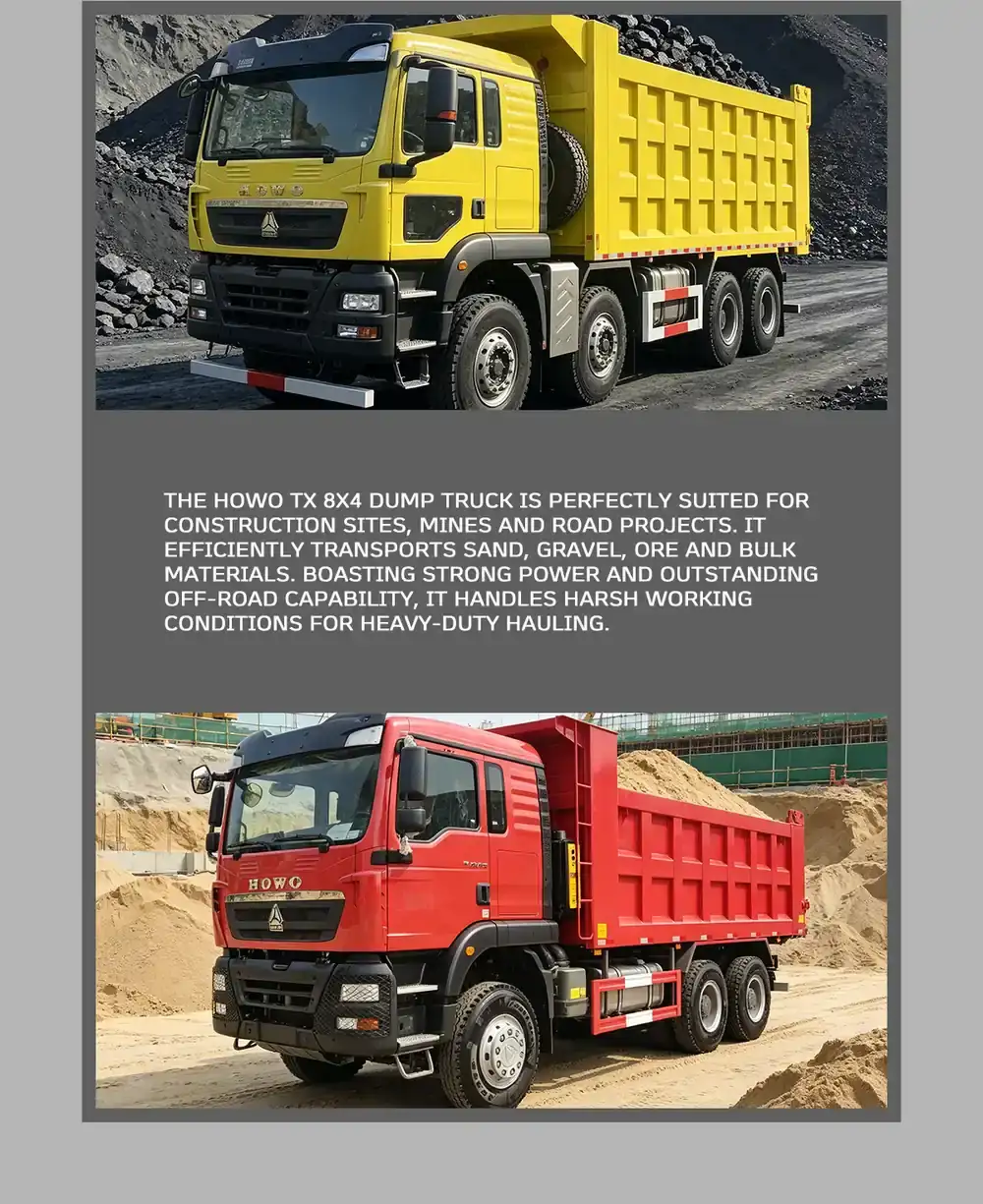

Open-Pit Mining and Ore Hauling Moving mineral ore and overburden across steep, unpaved mining roads in high-duty cycles. | Infrastructure and Earthworks Dam building, highway construction, airport earthworks and large foundation backfilling projects. |
Quarry and Aggregate Transport Hauling stone aggregates and wet or muddy materials with strong ground clearance and precise 8X4 traction control. |
Anti-Corrosion Maintenance Nude packing with full industrial waxing on cabin and chassis before ocean freight dispatch. | Shipping Implementation Bulk cargo ship, ro-ro vessel or flat rack container options, with full export documentation. Freight is quoted separately based on your destination port. |
1. Who are we? Based in Shandong, China, exporting since 2017. Sales to Africa (60%), Southeast Asia (20%), South Asia (10%), South America (5%), Oceania (3%), Mid East (2%). Office team of about 101-200 people. | 2. How can we guarantee the quality? Always a pre-production sample before mass production, and always a final inspection before shipment. |

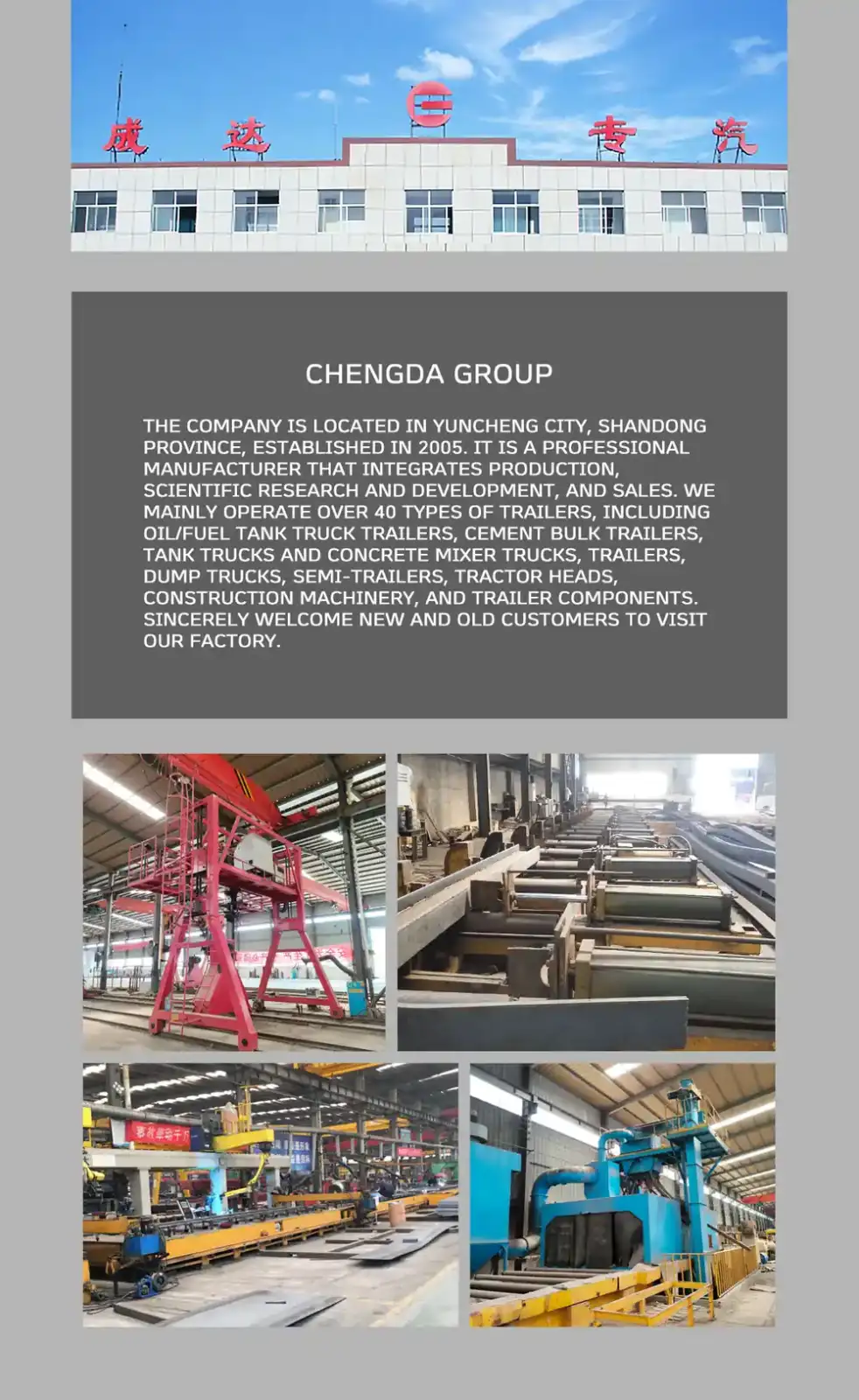

3. What can you buy from us? Dump trucks and tractor trucks; semi trailers including low bed, flatbed, fuel tanker and bulk cement trailers; low bed trailers; trailer parts. | 4. Why buy from us and not from other suppliers? Established in 2005, our plant is one of the qualified manufacturers of various trailers: factory-direct price, customized and diversified products, leading trailer production technology and a professional sales team. |
5. What services can we provide? Delivery terms: FOB, CFR, CIF, EXW. Payment currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF. Payment type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash. Languages spoken: English, Chinese, Spanish, Portuguese, Arabic, French. |
Still have questions? Our export team replies within 24 hours.
Contact Us Now
Customers from more than 80 countries visit our manufacturing base in China, coming from East Africa, West Africa, South America, Asia and other regions. Project managers and international buyers are welcome to inspect production lines and finished trucks at our factory before ordering.
ISO 9001:2015 Quality management system certification for our production lines. | SGS Audited and Verified Audited heavy vehicle supplier rating covering factory capability. |
BV Production Verification Bureau Veritas verification of industrial production standards. | CCC Compliance China Compulsory Certification standard heavy vehicle compliance. |
